Thermal Printer 3 Inch Bluetooth - for Personal - ZYWELL

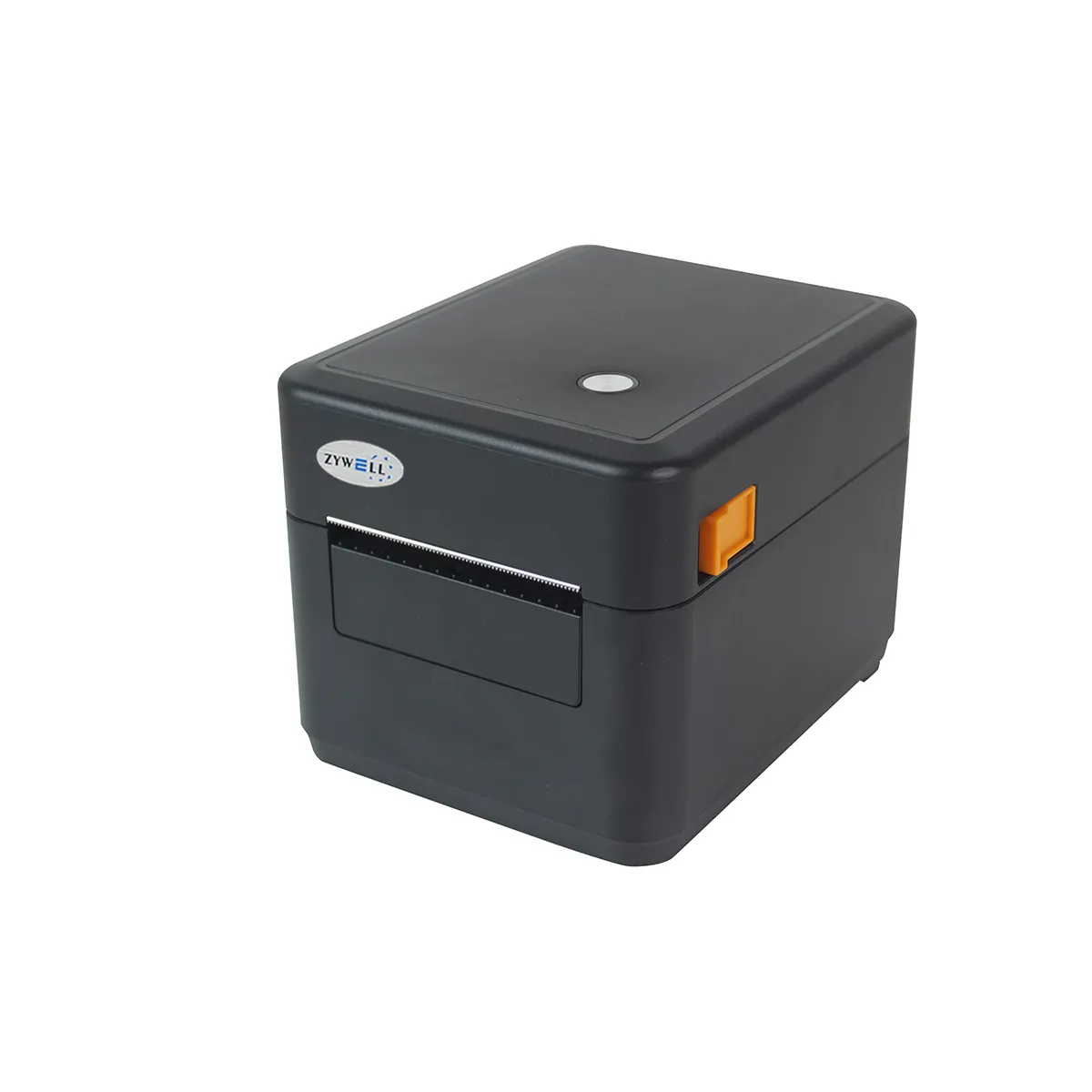

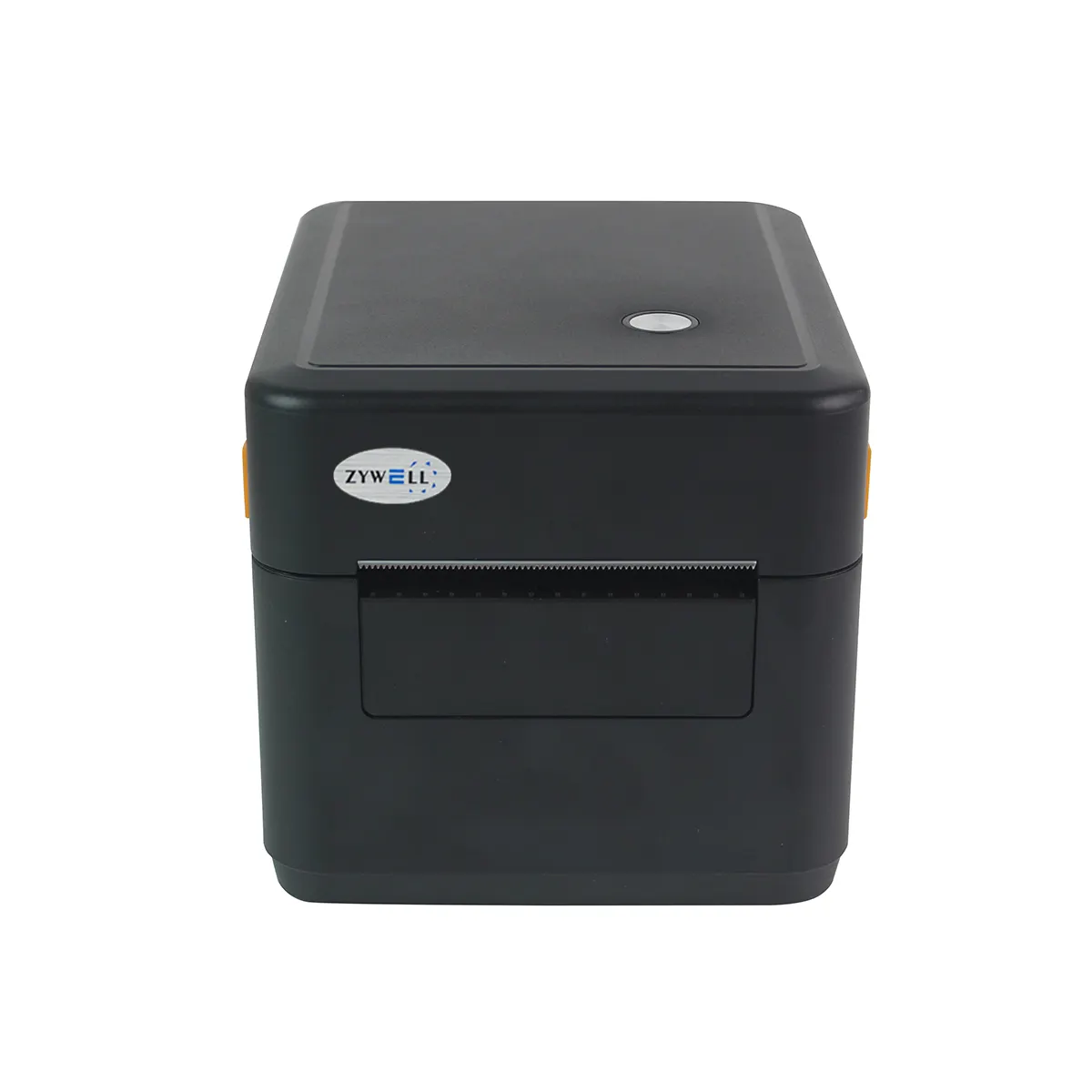

Zy-3608 80mm Thermal Label Printer
The ZY3608 is a compact, high-performance label printer designed for fast, stable printing in logistics, retail, and medical environments.
Equipped with a wear-resistant print head and a high-efficiency motor, it supports continuous printing of up to 10,000 sheets without overheating, ensuring long-term durability and reliability.

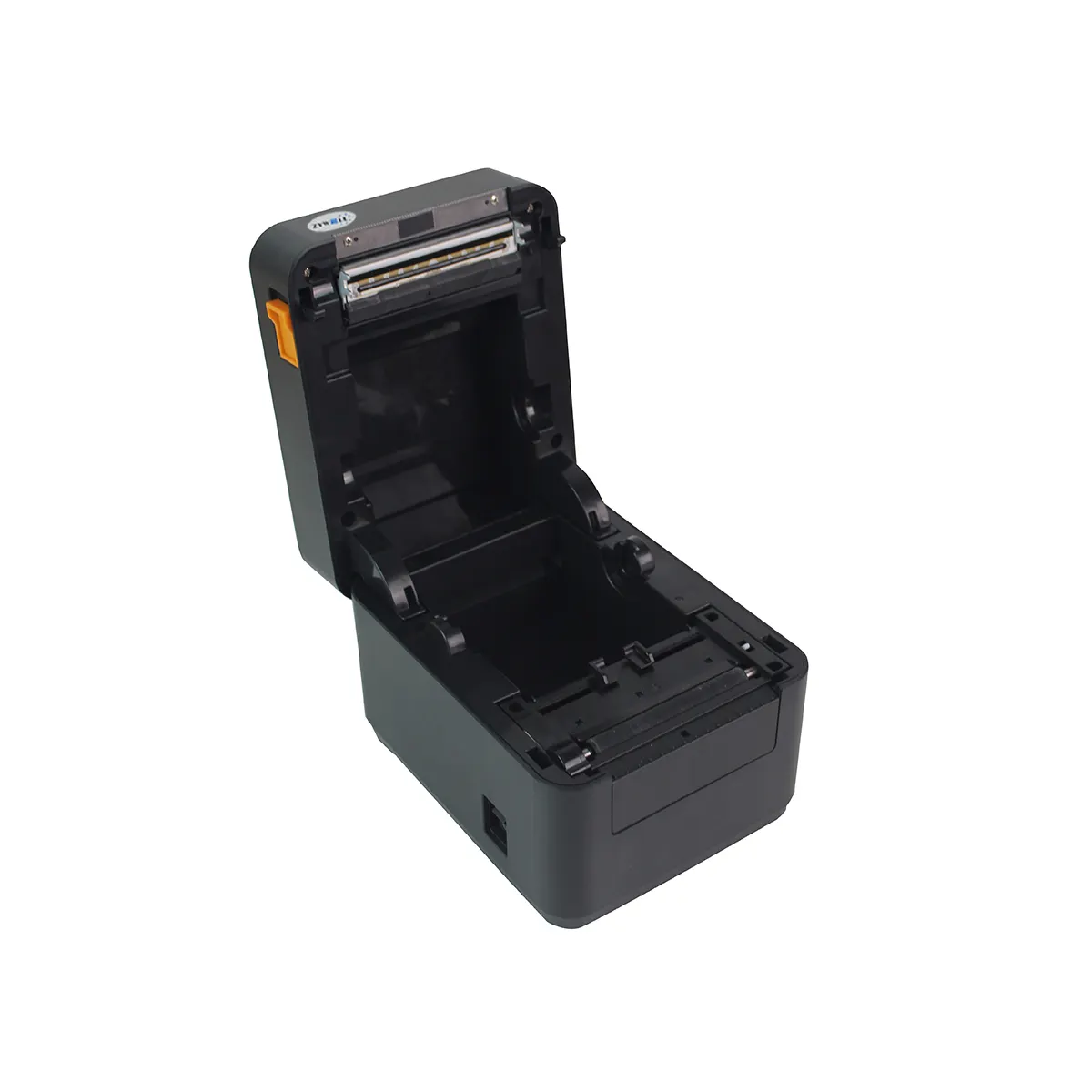

The printer supports both thermal label paper and thermal receipt paper, offering flexible application options. Its 90-degree open design enables quick and easy paper loading, while default center printing with adjustable paper width up to 84mm ensures accurate output.
With an internal power adapter and space-saving compact design, the ZY3608 keeps workspaces clean and efficient.
Additionally, it comes with ZLABEL professional label software, featuring a large library of templates and free, easy-to-use functions.

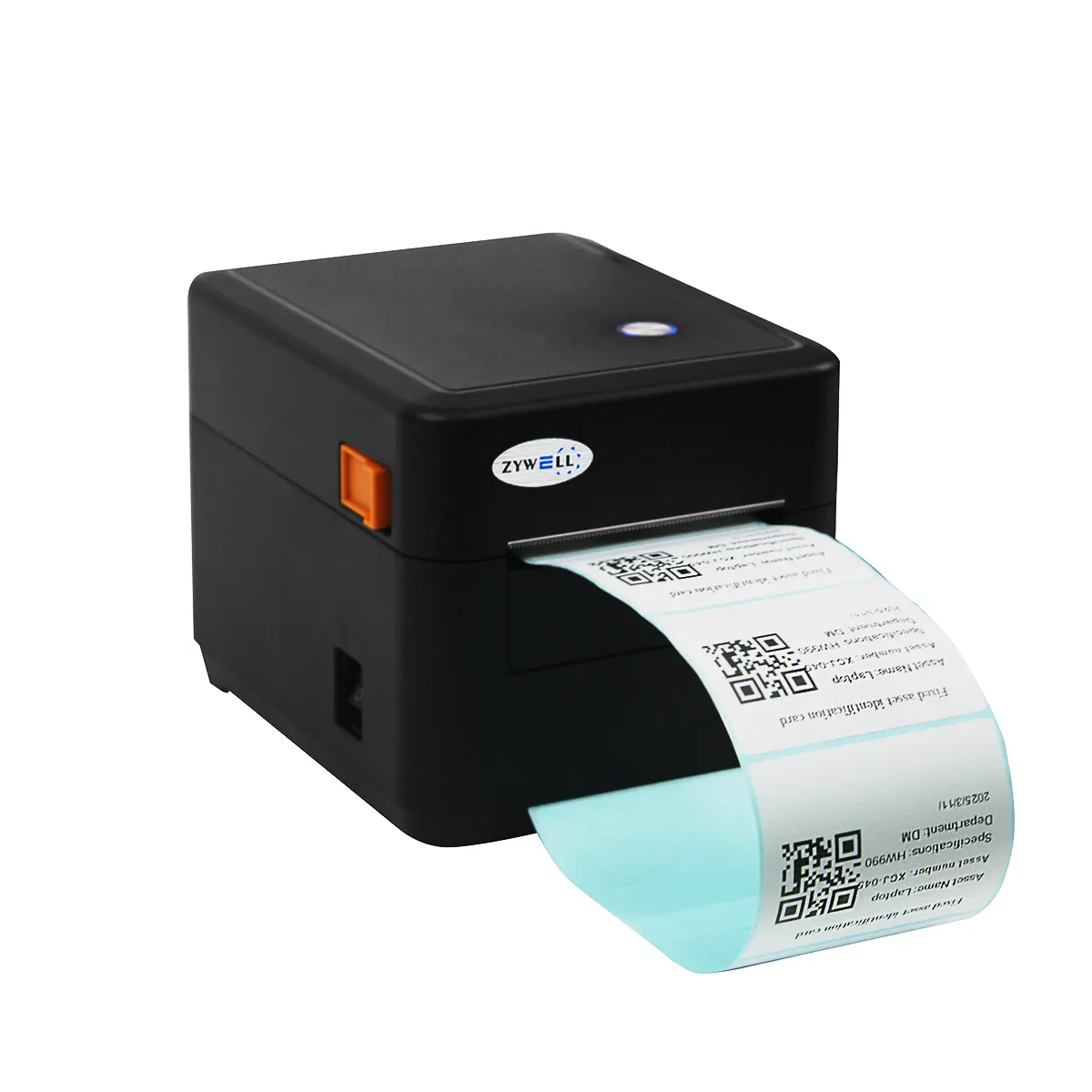

From shipping labels and price tags to critical medical labels, the ZY3608 delivers speed, precision, and reliability you can trust.
|
Model
|
|
Zy-3608 | |||
|
Printing
|
Print Method
|
Direct Thermal
|
|||
|
Print Speed
|
50.8mm/s(Min)
152mm/s(Max) |
||||
|
Resolution
|
203dpi(8dots/mm)
|
||||
|
Interface
|
USB/USB+BT/USB+WIFI/USB+LAN
|
||||
|
Memory
|
Memory
|
Input buffer: 2MNV Flash: 4M
|
|||
|
Paper
|
Paper Type
|
Thermal Receipt Paper/Thermal Label Paper | |||
|
Paper Width
|
20mm~84mm
|
||||
|
Paper Thickness
|
0.06~0.19mm
|
||||
|
Roll Dia
|
Max. 92mm
|
||||
|
Roll inner Diameter
|
25mm~38mm
|
||||
|
Paper Cut
|
Tear paper manually | ||||
| Fonts |
Font A | 12x24 | |||
| Font B | 9x17 | ||||
| Chinese | GB18030, BIG5 24x24dots | ||||
| Japanese/Korea | Support | ||||
| User-defined | Support | ||||
|
Physical Charateristics
|
Working
Condition
|
-5℃~45°C,20%~80%RH(No condensation)
|
|||
|
Storage
Condition
|
-40℃-55℃,≤93%RH(40C) | ||||
|
Dimensions
|
180(L)x147(W)x134.4(H)mm
|
||||
|
Net weight
|
Net weight: 1.1kg Gross weight: 1.6kg
|
||||
|
Graphics
|
Character length
|
Font 0~ Font 8
|
|||
|
Expand & Rotate
|
Bidirectional magnification 1~10x;0°，90°,270°360°rotation.
|
||||
|
Graphics process
|
Supports BMP/PCX/BAS files
|
||||
|
Barcode
|
1D
|
CODE128、EAN128、ITF、CODE39、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPC-E、UPCE+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN14
|
|||
|
2D
|
PDF417/QR CODE/DATA MATRIX
|
||||
|
Reliability
|
Print Head
|
50km
|
|||
|
Accessories
|
Accessories
|
USB data cable, power cord, instructionmanual, paper tray, roller
|
|||
|
Packing
|
Individual box
|
Dimension 246x165x150mm(LxWxH) 1unit/carton
|
|||
|
Master carton
|
Dimension 520x370x505mm(LxWxH)12unit/carton
|
||||
|
Detection
|
Print head
temperature
sensor
|
Thermal sensitive resistance
|
|||
|
Paper exists
detection |
Photoeletric sensor
|
||||
|
Power Supply
|
Input
|
AC 100V-240V 50/60HZ
|
|||
|
Output
|
DC 24V/1.25A
|
||||
|
OS
|
Emulation
|
TSPL(Lable mode)/ ESC/POS(Receipt mode)
|
|||
|
Driver
|
Windows/Mac/Lnux
|
||||
|
SDK
|
Android/iOS/Windows
|
||||
