ZYWELL | Top embedded thermal printer suppliers
After years of solid and rapid development, ZYWELL has grown into one of the most professional and influential enterprises in China. embedded thermal printer If you are interested in our new product embedded thermal printer and others, welcome you to contact us.This product highly increases people's productivity by aiding them in completing their work in a more efficient way, which helps to save much time.

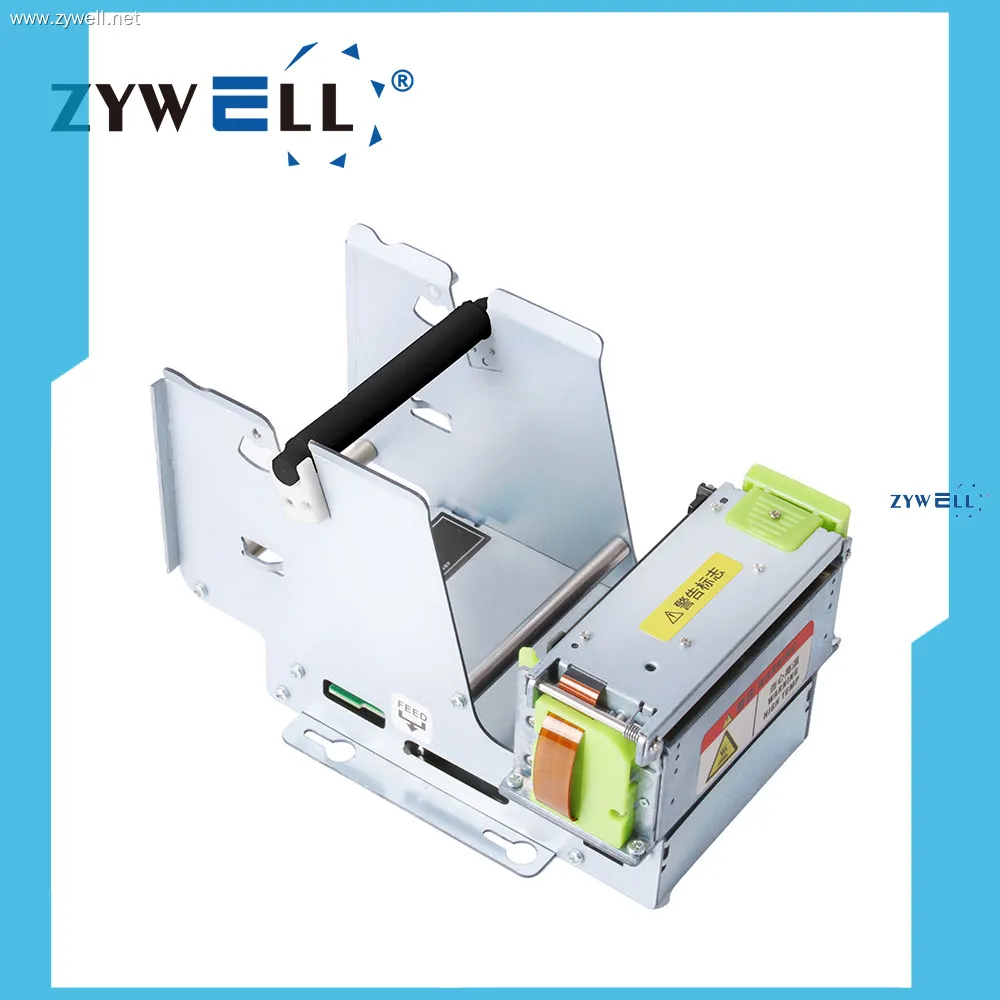

Z80-EM 80mm Embedded Thermal Ticket Printer take thermal technology, no needed of toner or ink, environment and save cost. The design is exquisite and fashion appearance. Stable performance support DIY all kinds of practical instruments, such as electronic scales, blood pressure index measuring instruments, soil element analyzers, driving recorders or DIY a small ticket printer for yourself. 80mm self-service terminal printer are widely used in instrumentation, food inspection, shopping terminals and other scenarios. It can be found in ATM machines, lockers, POS and supermarket electronic scales in life. Supports IOS, Android, Windows XP/7/8/10, Linux
Advantages
1. Embedded printer use 12V wide voltage supply mode. The higher voltage, the clearer printing effect;
2. Support various printing, included text, characters, barcode, QR code and picture etc;
3. Automatic feed, paper cutting, paper detection, paper prevent jam and so on, more easy to operate and save technical cost;
Details
1. 80mm Kiosk Thermal Receipt / Ticket Printer, USB, Serial Port
2. Offer both curved and straight paper paths for maximum flexibility in orientation
3.Widely Application:
ATM; parking system; payment kiosk; coupon machine; ticket vendor; inquiry machine; multimedia kiosk; gas station terminal; advertising displayer; attendance terminals, ID automation machine etc
Printing | Printer Model | Z80-EM | |||
Print Method | Direct Thermal | ||||
Print Speed | 200mm/s | ||||
Resolution | 576dots/line | ||||
Printing Width | 72mm | ||||
Interface | USB+Serial | ||||
Fonts | FontA | 1.5×3.0mm（12×24点） | |||
FontB | 1.1×2.1mm（9×17点) | ||||
Chinese | GB18030/BIG5 3.0×3.0mm（24×24点） | ||||
Japanese | Optional | ||||
Korea | Optional | ||||
User-defined | Support | ||||
Memory | Input buffer | 256Kbytes | |||
NV Flash | 256Kbytes | ||||
CODE | Supper code | Barcode:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABA/CODE93/CODE128 | |||
QRCODE | |||||
Paper | Paper Type | Direct Thermal | |||
Paper Width | max 82.5mm | ||||
Paper Thickness | 0.06~0.08mm | ||||
Roll Dia | Max.φ83mm | ||||
Paper Load | Easy paper loading | ||||
Paper Cut | Auto-cutter(Full cut or Partial cut) | ||||
Power | Power adapter | Input:AC 100V/240V,50~60HZ | |||
Output:DC 24V/2.5A | |||||
Physical Charateristics | Working Condition | 0℃~45℃，10%~80%RH | |||
Storage Condition | -10℃~60℃,10%~90%RH | ||||
Dimensions | |||||
Net weight | Gross Weight | ||||
Reliabillity | Printing head | 150KM | |||
Cutter | 1.5 million | ||||
Accessories | Paper roll, USB data cable, power adapter, power cord, manual | ||||
Packing | Individual box | 28.6*16.4*16mm | 1PCS | ||
Master carton | 51.5*29.5*34.5mm | 6PCS | |||
OS | Driver | Windows XP/Vista/Win7/Win8/Win10/Win11/Win2000/Win CE/OPOS/JPOS/ChromeOS/MacOS/Linux/Raspberry Pi OS | |||
SDK | Android,iOS | ||||
Features | Print head overheating protection | Overheating single red light flashing | |||
Paper out detection | Double red light flashes when opening the cover | ||||
Open cover detection | Out of paper double red lights flashing | ||||
LED introduction | Red light | Error alarm light, alarm flashes, normally off | |||
Blue light | Power light, always on when booting | ||||
Buzzer introduction | Buzzer | Report an error, but not normally | |||
The cutter defaults to half cutting, and full cutting can only be cut by command | |||||
All cut command | Non mode switch | 1b 64 07 1d 56 00/48 | |||
Half cut instruction | Non mode switch | 1b 64 07 1d 56 01/49 | |||
Why Chose Zywell Printer?
1. 19 years rich experience with thermal receipt printer, thermal label printer, mobile printer in POS industry
2. Professional Production Line to Control the Quality
3. Low quantity demand for OEM/ODM customization, Free Artwork & Design Customized services allow you to better promote your brand.
4. Short lead time(2-5days), Six production lines to ensure fast delivery.
5. Certification: All the printer certificated with ROHS, CE, FCC, ISO 9001
Zhuhai zywell is a printer manufacturer and comprehensive high-tech enterprise integrating POS printer design, research and development, production, sales and service.
