ZYWELL | Latest embedded thermal printer manufacturers
After years of solid and rapid development, ZYWELL has grown into one of the most professional and influential enterprises in China. embedded thermal printer We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product embedded thermal printer or our company.This product is absolutely a smart addition to the office accessories, for the fact that it greatly helps increase productivity.

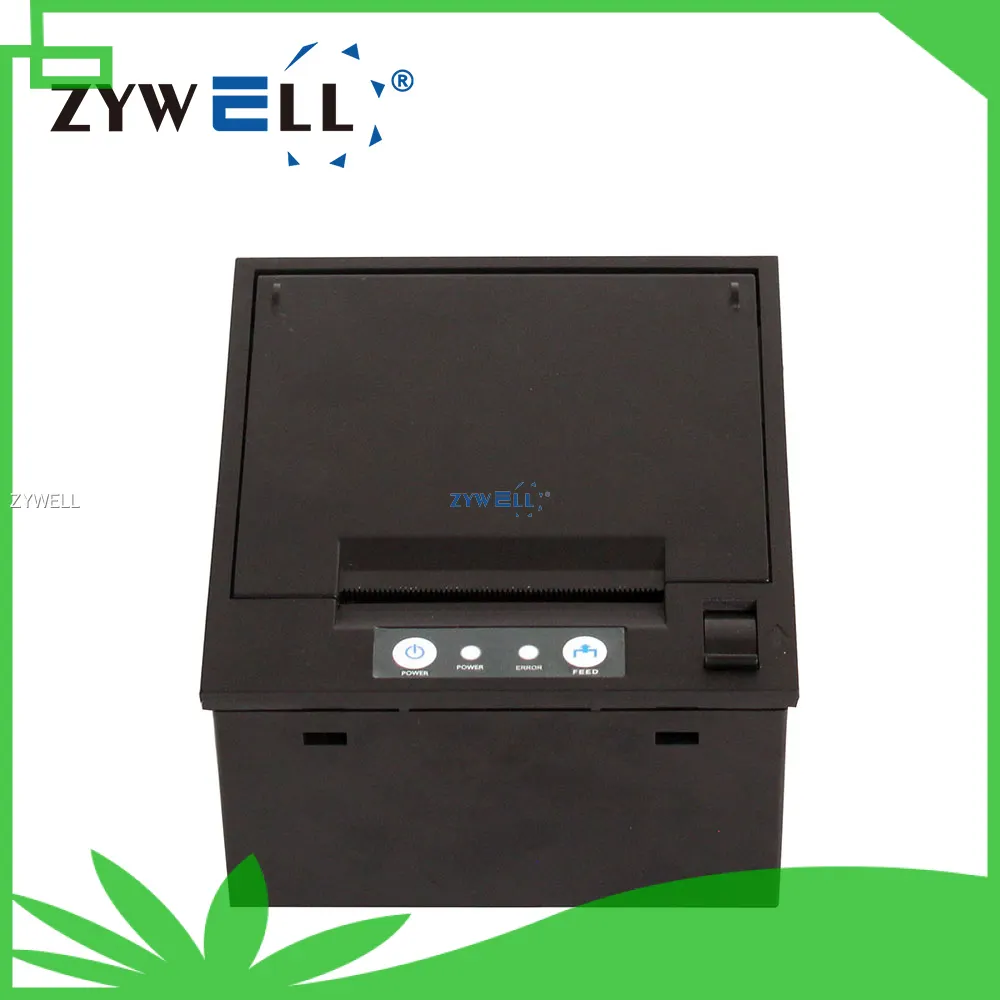

Z58-MB 58mm thermal panel printer use for checkout and cashier printing solution, 2inch panel mount thermal printers are also known as receipt printers, they're what you get when you go to the ATM or grocery store. Now you can embed a little printer of your own into an enclosure. USB RS232 interface can be easily embedded in any type of instrument. Supported cash drawer port in the meter and large paper rolls with a diameter of 48mm and printing at a speed of 90mm/s. Mini panel printer take direct thermal with auto cutter, more easy to operate.
POS PRINTER/Receipt PrintEr | |||||
Printing | Model | Z58-MB | |||
Print Method | Direct Thermal | ||||
Print Speed | 100mm/s | ||||
Resolution | 384dots/line | ||||
Printing Width | 48mm | ||||
Interface | USB+Serial | ||||
Fonts | FontA | 1.5×3.0mm（12×24） | |||
FontB | 1.1×2.1mm（9×17) | ||||
Chinese | GB18030/BIG5 3.0×3.0mm（24×24） | ||||
Japanese | Optional | ||||
Korea | Optional | ||||
User-defined | Support | ||||
Memory | Input buffer | 64Kbytes | |||
NV Flash | 256Kbytes | ||||
CODE | Supper code | Barcode:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABA/CODE93/CODE128 | |||
Paper | Paper Type | Direct Thermal | |||
Paper Width | 58mm | ||||
Paper Thickness | 0.06~0.08mm | ||||
Roll Dia | Max.φ50mm | ||||
Paper Load | Easy paper loading | ||||
Paper Cut | Manual tear | ||||
Power | Power adapter | Input:AC 100V/240V,50~60HZ | |||
Output:DC 12V/2A | |||||
Cash drawer output | DC 12V/1A | ||||
Physical Charateristics | Working Condition | 0℃~45℃，10%~80%RH | |||
Storage Condition | -10℃~60℃,10%~90%RH | ||||
Dimensions |
| ||||
Net weight | Gross Weight |
| |||
Reliabillity | Printing head | 50KM | |||
Cutter | No Cutter | ||||
Accessories | 58mm Paper rolle, USB cable,Serial cable, Power adaptor, Power cords, Manual | ||||
| Packing | Individual box | 18*16.4*13.5mm | 1PCS | ||
Master carton/ | 52*39.5*43.8mm | 18PCS | |||
OS | Driver | Windows XP/Vista/Win7/Win8/Win10/Win11/Win2000/Win CE/OPOS/JPOS/ChromeOS/MacOS/Linux/Raspberry Pi OS | |||
SDK | Android,iOS | ||||
Function | Power Switch | press power on | |||
Long press 3S to turn off the red light to power off | |||||
Print head overheating protection | Red light flashing for overheating | ||||
Paper out detection | Red light flashing for out of Paper | ||||
LED | Red Light | Error alarm light, alarm flashes, normal is always on | |||
Blue Light | Power light, always on when booting | ||||
Advantage
a: Big opening tangle of cover design, exchange the paper roll easily,save operating time;
b: Software command to Windows XP/Vista/Wind7/Win8/Win10/Win2000/Win;
Strong compatibility, suitable for all kinds of cash register equipment
c: Use Origin Japanese Mechanism, printer head with strict quality control, more durable to use, save cost well.
Details
1.Small size will be simple embedded to any kinds of instruments and meters;
50KM print head durability, industrial level print head
2. Printer mechanism Widely Application in kinds of instruments
Medical equipment, Industrial instruments, food tester, weighing equipment,Gas station, Register instruments...
Why Chose Zywell Printer
1. 19 years rich experience with professional team in POS industry, mainly dealing with thermal receipt printer, label printer, mobile printer
2. Professional skilled technicians & worker to Control the Quality
3. Clear market strategic and protection
We will provide customers with market protection to avoid market conflicts.
4. Short lead time(2-5days), Six production lines to ensure fast delivery
5. Quality assurance, all Zywell printer certificated with CE, CCC, ROHS, ISO9001, BIS
Zhuhai zywell is a printer manufacturer and comprehensive high-tech enterprise integrating POS printer design, research and development, production, sales and service.
