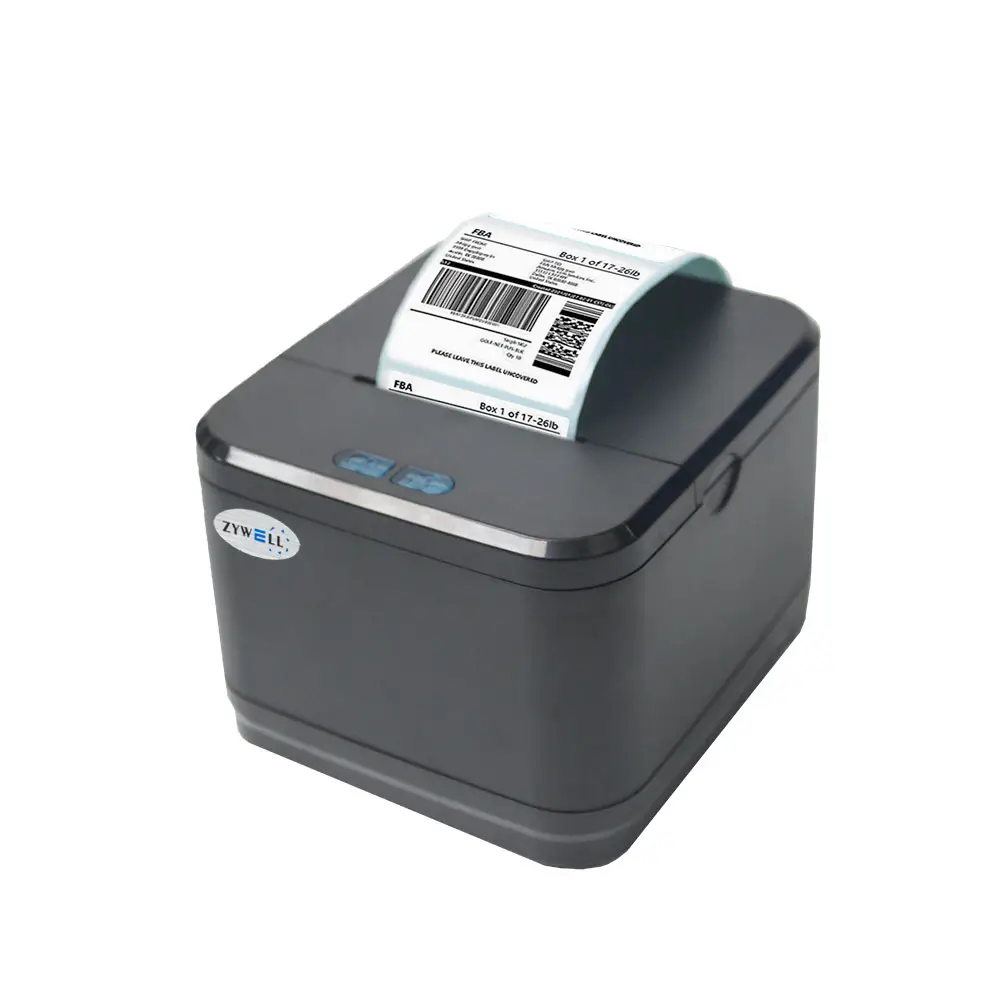

Z5808 58MM Mini Label Printer
Adjustable paper separate to meet different label size paper
Typce C Design, Built-in adapter, saving space
One button mode transfer,easy to operate
USB, LAN, BLUETOOTH/WIFI Multi-interface for option
Support work with Windows, Mac, Smartphone
More Choices
Z5808 58MM Label Printer
ZYWELL Z5808 58MM label printer is an eco-friendly and efficient solution for businesses, offering carbon-free, color-free, and ink-free printing. It boasts a rich interface with options for USB+LAN and USB+LAN+Bluetooth, allowing for versatile connectivity. The printer supports logo downloads and printing, simplifying branding integration, and features easy driver and setup software installation. In addition, it supports advanced barcode formats such as PDF417, QR codes and data matrices, making it a thermal label printer for a variety of applications.
Model |
| Z5808 | |||
Printing | Print Method | Direct Thermal | |||
Print Speed | Max:101mm/s | ||||
Resolution | 203 dpi | ||||
Print Width | 48mm | ||||
Port | USB+LAN/USB+LAN+BLUETOOTH | ||||
Memory | Input buffer | 256kbytes | |||
NV Flash | 4M | ||||
Typeface | Font | Alphanumeric; Simplified Chinese Traditional Chinese: 35 international character sets | |||
Money Case | Money Case | DC 12V/1A | |||
Sensor | Print head position detection | Microswitch | |||
| Paper Detector | Seam mark detection, missing paper detection, open cover detectio | ||||
Attachment | USB cable, power cable,manual | ||||
Paper | Paper Type | Thermal Label Paper | |||
Paper Thickness | 0.06mm-0.19mm | ||||
Paper Width | 45/40/35/30/25/20/15/57mm(Backing paper) | ||||
Loading Mode | Wrapper | ||||
Roll Dia | 50mm (MAX) | ||||
Cutter | Tear by hand | ||||
Bar Code | 1D | CODE128 / 128M/ EAN128/CODE39 /39C/39S / CODE93/EAN13 / EAN13+2 / EAN13+5 /AN8 /EAN8+2 / EAN8+5 / 25 / 25C/CODABAR / POSTNET / UPC-A/UPCA+2 / UPCA+5 /UPC-E / UPCE+2 /UPC-E+5 / CPOST / MSI / MSIC /PLESSEY / ITF14 / EAN14 | |||
2D | PDF417 / QR Code/Data matrix | ||||
Physical Characteristics | Working Condition | 5°C~45°C, 20%~80%RH (no condensation) | |||
Storage Condition | -40°C-55°C,≤93%RH(40°C) | ||||
| Dimension | 131(D)x118(W)x93.3(H)mm | ||||
| Net Weight | 0.45KG | ||||
| Gross Weight | 0.6KG | ||||
Power Supply | Input | AC 100V-240V 50/60HZ | |||
| Exportation | DC 9V/ 2.0A | ||||
| Reliability | Print Head | 50KM | |||
| Cutter | No | ||||
Packing | Inner Box | 190X130X100mm(LXWXH) | 1unit/carton | ||
Outer Box | 605X290X348mm(LXWXH) | 18units/carton | |||
OS | Emulation | TSPL，CPCL，ESC/POS | |||
Driver | Windows XP/Vista/Win7/Win8/Win10/Win2000/Win11 | ||||
SDK | Android/iOS/Windows | ||||
| Simulate | ESC/POS | ||||
Details
The Z5808 printer's bottom label indicates it's a portable barcode printer with a paper width of 20-58mm, a print speed of 101mm/s, a 9V-2A power input, and RoHS compliance, along with interface details.
